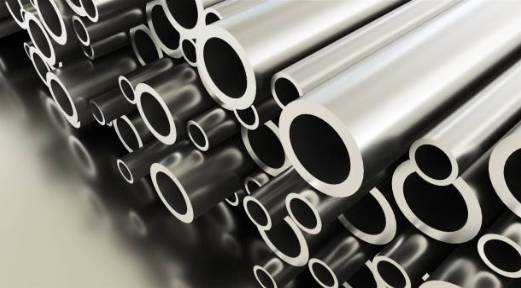

Seamless Titanium Tubes
- Superior chemical resistance
- High tensile strength-to-density ratio
- Fatigue resistant
- Nonmagnetic and suitable for medical use
Custom specifications are available upon request.
Product inquirySpecifications
| Product | Diameters | Wall thickness | Length | Titanium grades | Standards |
|---|---|---|---|---|---|
| Seamless titanium tubes | 16 mm to 330 mm | 0.5 mm and above | Up to 15,000 mm | TAD, TA1–TA11 | ASTM B337, ASTM B338, ASTM B861 |

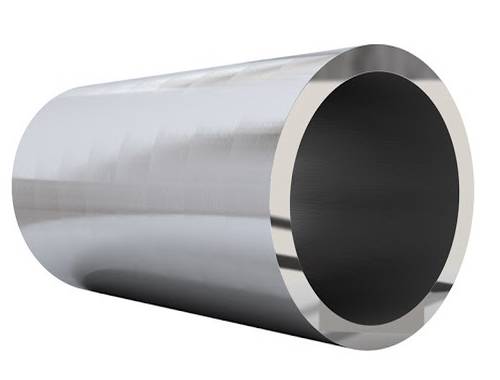

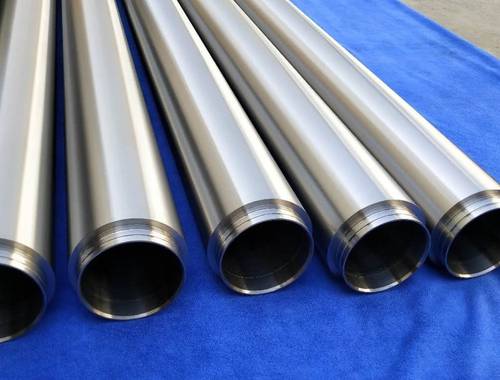

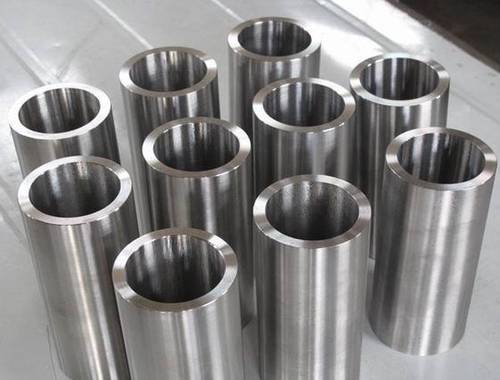

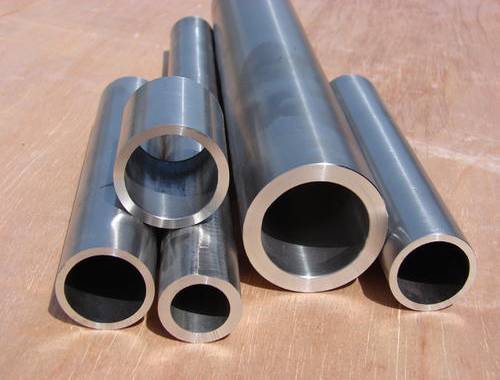

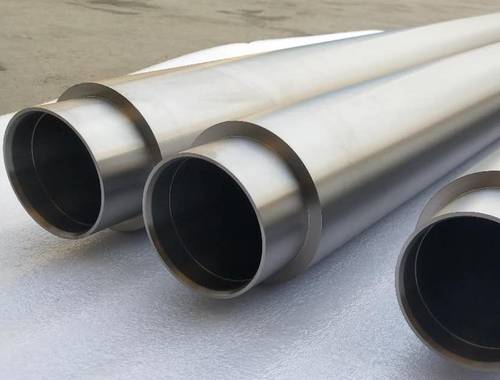

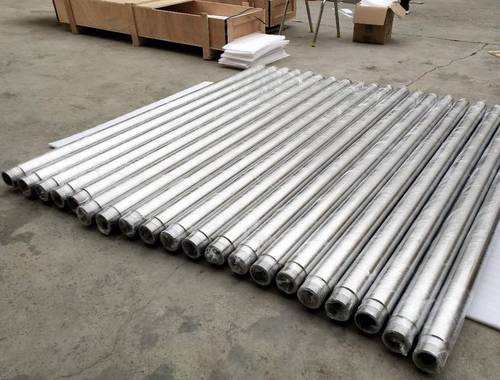

Examples
Additional information
Titanium grade comparison
China GB/T |
Composition |
USA ASTM |
Russia GOST |
Japan JIS |
Germany DIN |
UK BS |
| TA1（ELI） | Ti | Grade 1 | BT1-00 | JIS 1 | Ti1 | 2TA 1 |
| TA2（ELI） | Ti | Grade 2 | BT1-0 | JIS 2 | Ti3 | 2TA2 |
| TA3（ELI） | Ti | Grade 3 | BT1-0 | JIS 3 | Ti4 | 2TA2 |
| TA4（ELI） | Ti | Grade 4 | BT1-0 | JIS 4 | Ti1 | 2TA3 |
| TA5 | Ti-4Al-0.005B | |||||
| TA6 | Ti-5Al | BT5 | ||||
| TA7（ELI） | Ti-5Al-2.5Sn | A-1、Grade 6 | BT5-1 | KS115AS-C | TiAl5Sn2.5 | |
| TA8（TA8-1） | Ti-0.05Pd | Grade 16（Grade 17） | 17种（18种） | |||
| TA9（TA9-1） | Ti-0.2Pd | Grade 7（Grade 11） | 11种（12种） | |||
| TA10 | Ti-0.3Mo-0.8Ni | Grade 12 | Ti Ni0.8Mo0.3 | |||
| TA11 | Ti-8Al-1Mo-1V | A-4（Ti-811） | Ti-811 | Ti-811 | Ti-811 | Ti-811 |
| TA12（TA12-1） | Ti-5.5Al-4Sn-2Zr-1Mo-1Nd-0.25Si | |||||
| TA13 | Ti-2.5Cu | |||||
| TA14 | Ti-2.3Al-11Sn-5Zr-1Mo-0.2Si | |||||
| TA15 | Ti-6.5Al-1Mo-1V-2Zr（-0.15Si） | BT20 | ||||
| TA15-1 | Ti-2.5Al-1Mo-1V-1.5Zr | |||||
| TA15-2 | Ti-4Al-1Mo-1V-1.5Zr | |||||
| TA16 | Ti-2Al-2.5Zr | |||||
| TA17 | Ti-2Al-2V | |||||
| TA18 | Ti-3Al-2.5V | Grade 9（AB-5） | OT4-1B | 61种（61F种） | ||
| TA19 | Ti-6Al-2Sn-4Zr-2Mo-0.1Si | Ti-6242S（Approx. AB-4） | Ti-6242S | Ti-6242S | ||
| TA20 | Ti-4Al-3V-1.5Zr | |||||
| TA21 | Ti-1Al-1Mn | OT4-0 | ||||
| TA22（TA22-1） | Ti-3Al-1Mo-1Ni-1Zr | |||||
| TA23 | Ti-2.5Al-2Zr-1Fe | |||||
| TA24（TA24-1） | Ti-3Al-2Mo-2Zr | |||||
| TA25 | Ti-3Al-2.5V-0.05Pd | Grade 18 | ||||
| TA26 | Ti-3Al-2.5V-0.1Ru | Grade 26（Grade 27） | ||||
| TA27（TA27-1） | Ti-0.10Ru | |||||
| TA28 | Ti-3Al | |||||
| TB2 | Ti-5Mo-5V-8Cr-3Al | |||||
| TB3 | Ti-3.5Al-10Mo-8V-1Fe | Approx. Ti-8823 | Approx. BT32 | |||
| TB4 | Ti-4Al-7Mo-10V-2Fe-1Zr | Ti-47121 | ||||
| TB5 | Ti-15V-3Al-3Cr-3Sn | Ti-15333 | Approx. BT-35 | Ti-15-3 | Ti-15-3 | Ti-15-3 |
| TB6 | Ti-10V-2Fe-3Al | Ti-10-2-3 | ||||
| TB7 | Ti-32Mo | |||||
| TB8 | Ti-15Mo-3Al-2.7Nb-0.25Si | Grade 21（Beta 21S） | ||||
| TB9 | Ti-3Al-8V-6Cr-4Mo-4Zr（-0.06Pd） | Grade 19（Grade 20） | ||||
| TB10 | Ti-5Mo-5V-2Cr-3Al | Beta C | ||||
| TB11 | Ti-15Mo | |||||
| TC1 | Ti-2Al-1.5Mn | OT4-1 | ||||
| TC2 | Ti-4Al-1.5Mn | OT4 | ||||
| TC3 | Ti-5Al-4V | |||||
| TC4（TC4ELI） | Ti-6Al-4V | Grade 5（Grade 23） | BT6（BT6C） | 60种（60E种） | TiAl6V4 | Ti-6Al-4V |
| TC6 | Ti-6Al-1.5Cr-2.5Mo-0.5Fe-0.3Si | BT3-1 | ||||
| TC8 | Ti-6.5Al-3.5Mo-0.25Si | Approx. BT8 | ||||
| TC9 | Ti-6.5Al-3.5Mo-2.5Sn-0.3Si | |||||
| TC10 | Ti-6Al-6V-2Sn-0.5Cu-0.5Fe | Approx. AB-3 | ||||
| TC11 | Ti-6.5Al-3.5Mo-1.5Zr-0.3Si | Approx. BT9 | ||||
| TC12 | Ti-5Al-4Mo-4Cr-2Zr-2Sn-1Nb | |||||
| TC15 | Ti-5Al-2.5Fe | |||||
| TC16 | Ti-3Al-5Mo-4.5V | BT16 | ||||
| TC17 | Ti-5Al-2Sn-2Zr-4Mo-4Cr | |||||
| TC18 | Ti-5Al-4.75Mo-4.75V-1Cr-1Fe | Approx. BT22 | ||||
| TC19 | Ti-6Al-2Sn-4Zr-6Mo | Ti-6246 | ||||
| TC20 | Ti-6Al-7Nb | |||||
| TC21 | Ti-6Al-2Mo-1.5Cr-2Zr-2Sn-2Nb | |||||
| TC22 | Ti-6Al-4V-0.05Pd | Grade 24 | ||||
| TC23 | Ti-6Al-4V-0.1Ru | Grade 29 | ||||
| TC24 | Ti-4.5Al-3V-2Mo-2Fe | SP-700 | ||||
| TC25 | Ti-6.5Al-2Mo-1Zr-1Sn-1W-0.2Si | Approx. BT8-1 | ||||
| TC26 | Ti-13Nb-13Zr | |||||
Choosing a titanium grade
- Grade 1: Pure Titanium, relatively low strength and high ductility. Plate heat exchangers.
- Grade 2: The pure titanium most used. The best combination of strength, ductility and weldability. Piping systems.
- Grade 3: High strength Titanium, used for Matrix-plates in shell and tube heat exchangers.
- Grade 5: The most manufactured titanium alloy. Exceedingly high strength. High heat resistance. Aerospace, subsea.
- Grade 7: Superior corrosion resistance in reducing and oxidizing environments. Chemical Industry.
- Grade 9: Very high strength and corrosion resistance. Hydraulic piping, subsea.
- Grade 11: Applications as for Grade 7. Suitable for deep drawing.
- Grade 12: Better heat resistance than pure Titanium. Applications as for Grades 7 and 11. Shell and tube heat exchangers.
Product inquiry
Tell us the required grade, diameter, wall thickness, length, quantity, and application. We will recommend a suitable specification.
