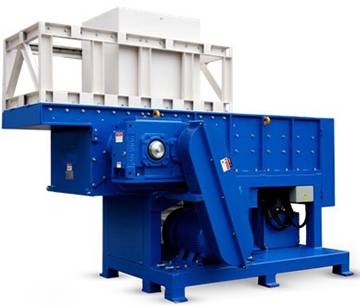

Single Shaft Shredder
Shreds plastics, paper, fiber, rubber, organic waste, and more.
Material output by the machine can be used directly or sent to the next stage of size reduction.
The Siemens microcomputer control system automates starting, stopping, and reversing. Its sensors protect the machine against overloading and jamming.
Request a suitable solution for your requirements. Tell us the input material and size, required output size, and shredding capacity.
Product inquiryRotors for different materials
Blades are made from hardened DC53 steel and can be turned four times before replacement.

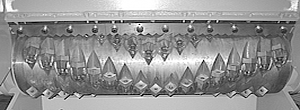

High-Performance Rotor
The rotor is our standard rotor, suitable for processing a wide range of materials at high speed. Materials include plastics, wood, paper, fiber, cable, etc.

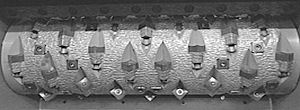

Hard Material Rotor
The rotor is designed specifically for processing hard materials such as ABS, PC, nylon, etc. The blade holders are set deeper into the shaft to reduce the impact on the blades and shaft.

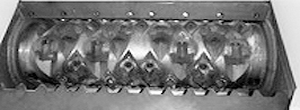

Film Rotor
The rotor is designed specifically for processing films. Block blades set into the shaft prevent film from wrapping around the rotor and Hardox surface on the rotor protects the shaft against abrasion from sand and dirt.
Product advantages

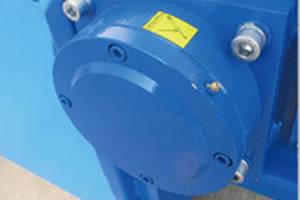

Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing. Grease points to release oil at intervals to increase service life.

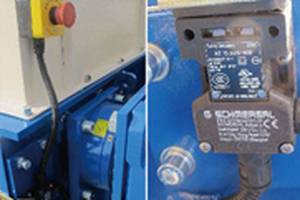

CE Certified
Safety devices in line with European CE Certification.

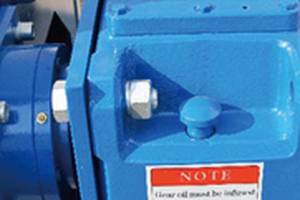

Gearbox
Water cooled gearbox guards against overloading. Hardened teeth on the reducer.

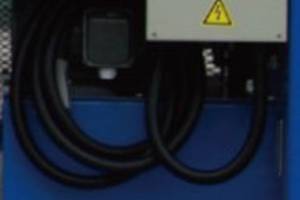

Hydraulic Station
The ram pressure and timing can be adjusted to suit different materials. From WT40 series and above the machine can be fitted with an air-cooled two-speed pump.

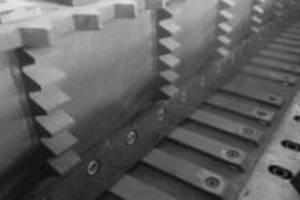

Ram
The hydraulic ram pushes material against the rotor.

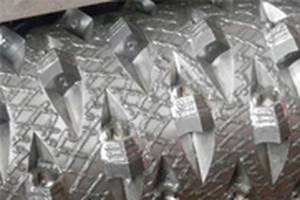

Rotor
Various rotor configurations available for processing a wide range of materials. Blades are made from hardened DC53 steel, the blades can be turned 4 times before changing.

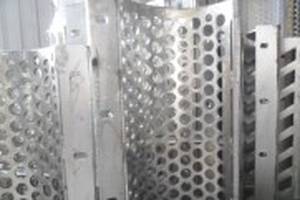

Screen
Various screen sizes.

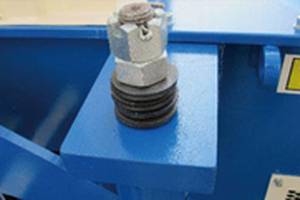

Shock Absorption
Absorbs vibrations caused by the shredding of the material. This protects the machine and its various parts from damage.
Applications

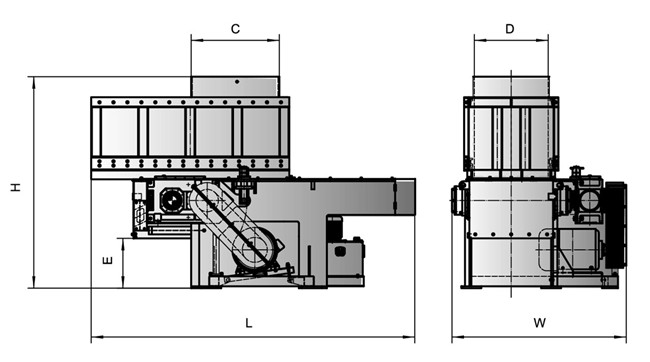

Models and technical parameters
Small single shaft shredder
|
Item Model |
BM 2250 |
BM 2260 |
BM 3060 |
BM 3080 |
|---|---|---|---|---|
|
Dimension L/W/H(mm) |
1780 × 1190 × 1754 |
1780 × 1190 × 1754 |
2455 × 1478 × 1700 |
2455 × 1478 × 1700 |
|
Cutting Chamber C/D(mm) |
857 × 502 |
857 × 602 |
1200 × 600 |
1200 × 800 |
|
Height of discharge port H(mm) |
546 |
546 |
500 |
500 |
|
Cylinder Stroke (mm) |
500 |
500 |
750 |
750 |
|
Rotor Diameter (mm) |
φ224.7 |
φ224.7 |
φ300 |
φ300 |
|
Main Shaft Speed (r/min) |
83 |
83 |
83 |
83 |
|
Screen Mesh (mm) |
φ25 |
φ25 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
24+4 |
28+4 |
30+4 |
42+4 |
|
Stator-knives (pcs) |
2+2 |
2+2 |
2 |
2 |
|
Main Motor Power (kW) |
15 |
18.5 |
22 |
30 |
|
Hydraulic Motor Power (kW) |
2.2 |
2.2 |
2.2 |
2.2 |
|
Weight (kg) |
1300 |
1400 |
1550 |
1950 |
Medium single shaft shredder
|
Item Model |
BM 4080 |
BM 40100 |
BM 40120 |
BM 40150 |
|---|---|---|---|---|
|
Dimension L/W/H(mm) |
2825 × 1747 × 1875 |
2825 × 2004 × 1875 |
2825 × 2564 × 1875 |
2825 × 2964 × 1935 |
|
Cutting Chamber C/D(mm) |
1410 × 800 |
1410 × 1000 |
1410 × 1200 |
1410 × 1500 |
|
Height of discharge port E(mm) |
500 |
500 |
500 |
560 |
|
Cylinder Stroke (mm) |
900 |
900 |
900 |
900 |
|
Rotor Diameter (mm) |
φ390.9 |
φ390.3 |
φ390.3 |
φ390.3 |
|
Main Shaft Speed (r/min) |
74 |
74 |
74 |
74 |
|
Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
42+4 |
54+4 |
66+4 |
90+4 |
|
Stator-knives (pcs) |
2 |
2 |
2 |
3 |
|
Main Motor Power (kW) |
37 |
45 |
55 |
75 |
|
Hydraulic Motor Power (kW) |
2.2 |
2.2 |
5.5 |
5.5 |
|
Weight (kg) |
3500 |
4000 |
5000 |
6200 |
Large single shaft shredder
|
Item Model |
BM 48150 |
BM 48200 |
BM 48250 |
|---|---|---|---|
|
Dimension L/W/H(mm) |
3135 × 2968 × 2105 |
3255 × 4415 × 2720 |
3255 × 4615 × 2720 |
|
Cutting Chamber C/D(mm) |
1650 × 1500 |
1450 × 2000 |
1560 × 2500 |
|
Height of discharge port E(mm) |
600 |
950 |
950 |
|
Cylinder Stroke (mm) |
1000 |
950 |
950 |
|
Rotor Diameter (mm) |
φ464.8 |
φ464.8 |
φ464.8 |
|
Main Shaft Speed (r/min) |
74 |
74 |
74 |
|
Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
90+4 |
114+4 |
144+4 |
|
Stator-knives (pcs) |
3 |
4 |
5 |
|
Main Motor Power (kW) |
90 |
75+75 |
90+9 |
|
Hydraulic Motor Power (kW) |
5.5 |
7.5 |
7.5 |
|
Weight (kg) |
7800 |
10000 |
12000 |
Heavy-duty single shaft shredder
|
Item Model |
BM 66150 |
BM 66200 |
BM 66250 |
BM 66300 |
BM 66400 |
|---|---|---|---|---|---|
|
Dimension L/W/H(mm) |
4100 × 3450 × 3000 |
4100 × 3950 × 3000 |
4100 × 4450 × 3000 |
4100 × 6800 × 3000 |
4100 × 6800 × 3000 |
|
Cutting Chamber C/D(mm) |
1885 × 1500 |
1885 × 2000 |
1885 × 2500 |
1855 × 3000 |
1855 × 4000 |
|
Height of discharge port E(mm) |
1020 |
1020 |
1020 |
1020 |
1020 |
|
Cylinder Stroke (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Rotor Diameter (mm) |
φ660 |
φ660 |
φ660 |
φ660 |
φ660 |
|
Main Shaft Speed (r/min) |
75 |
75 |
75 |
75 |
75 |
|
Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
126+4 |
158+4 |
225+4 |
291+4 |
363+4 |
|
Stator-knives (pcs) |
3 |
4 |
5 |
6 |
8 |
|
Main Motor Power (kW) |
75+75 |
90+90 |
110+110 |
132+132 |
160+160 |
|
Hydraulic Motor Power (kW) |
11 |
11 |
11 |
11 |
11 |
|
Weight (kg) |
12100 |
12500 |
14200 |
15500 |
17500 |
Product inquiry
Tell us the material, input size, required output size, and desired capacity. We will recommend a suitable configuration.
